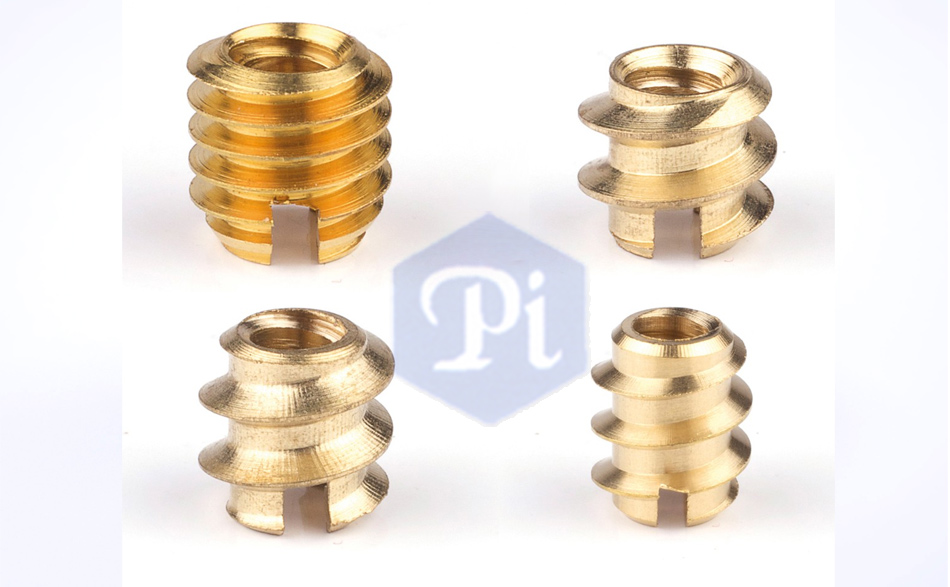

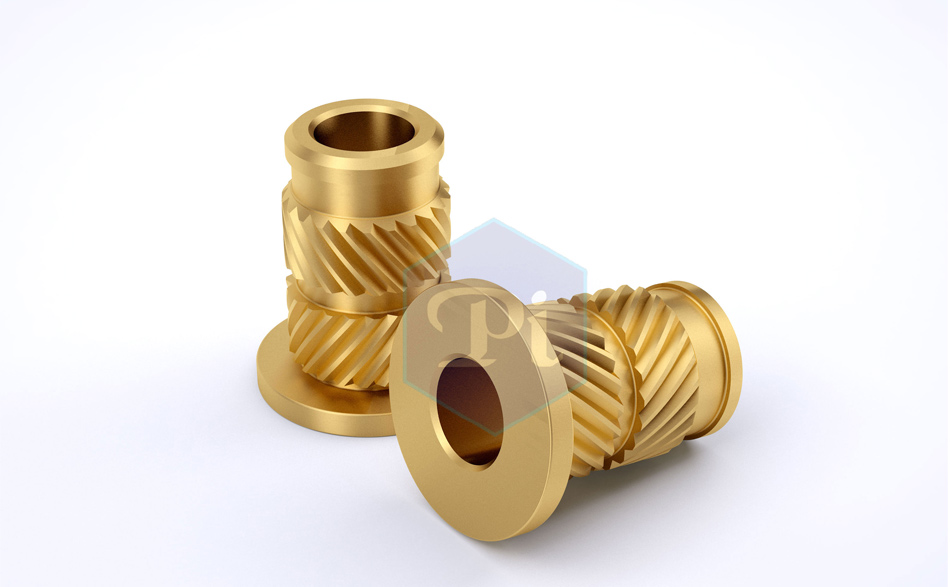

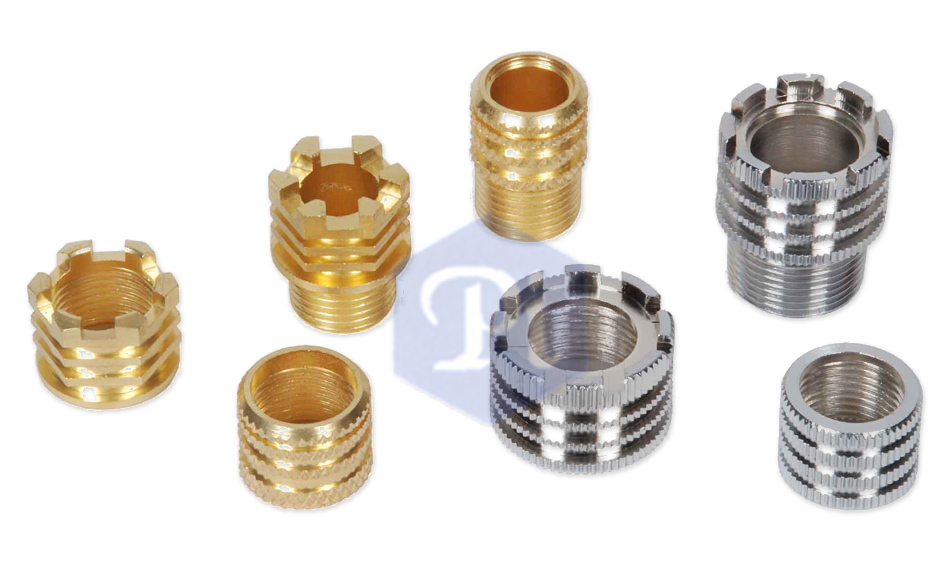

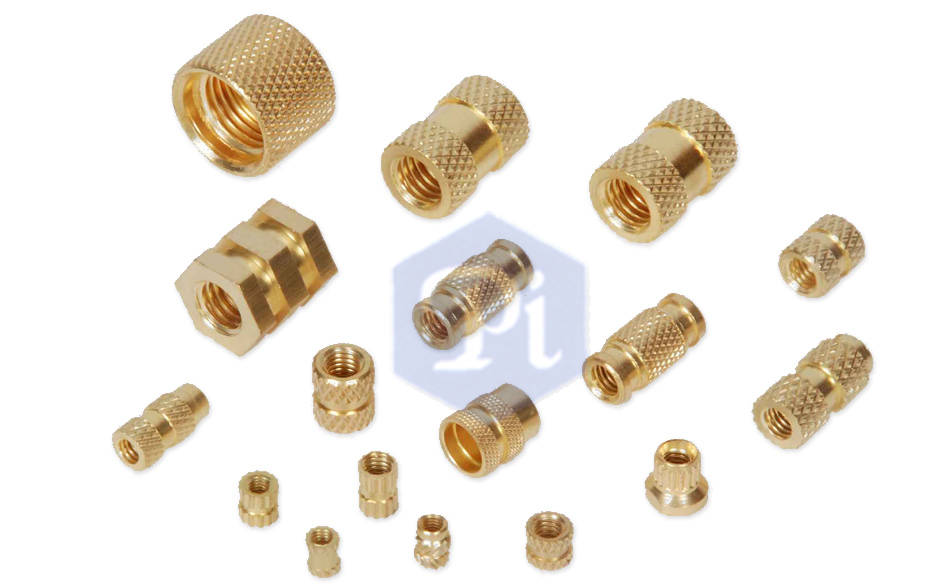

We are one of the well recognized business entity engaged in manufacturing and supplying high quality Brass Inserts. Manufactured using quality tested raw material, the range is known for durability and high strength. These Brass Inserts are available as per custom requirements.

Special Features of Brass Inserts :

• •  Threads as per International Go & Not Go Standards.
• •  Deep Groove for maximum Pull Out Resistance.
• •  Inner Diameter (I/D) after Threads with very close tolerance to prevent                  unnecessary flush to enter into the brass inserts.

Knurling Available :

• •  Diamond
• •  Straight
• •  Unidirectional
• •  Both blind and through brass inserts are available with no minimum Qty.

Threads :

• •  ISO Metric (MM Threads)
• •  BA, BSW (Inches), UNC, UNF or
• •  Any as per custom design

Material

Length/Size

Finish and Coating

• • •   Free Cutting Brass IS 319 Type (I) or BS 249 Type (I) or High Grade
  • •   Any Special Brass Material Composition as per customers requirement
• • •   Begins from M2 or equivalent threads and up to any size as per custom         design or requirement
• • •   Natural, Nickle Plated, Tin Plated or any coating as per customer    specification.
